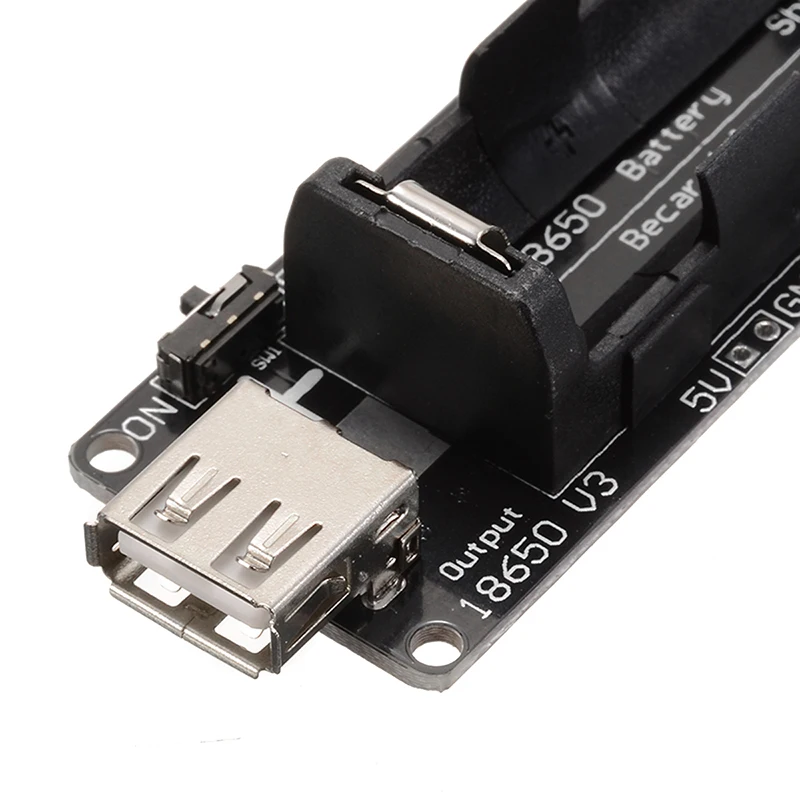

You can use this battery to shield power from many products like Raspberry Pi. this version the 18650 shield has a protection. The output current can reach 2A.
- Battery protection (overcharge or overdischarge)
- Micro USB port input
- Type A USB output
- 0.5A current charging
- 1 switch to control the USB output, 5 ~ 8v input voltage
- 3V and 1A output
- And 5V voltage 2A output
- LED indication (green means full, red means charging)
- 3v output port X3
- 5V output port X3 be careful with “+” and “-“, you should follow the direction “+” and “-” on the PCB.
Note: If you put it in the wrong direction, the charging chip will be destroyed. This product does not include battery 18650
