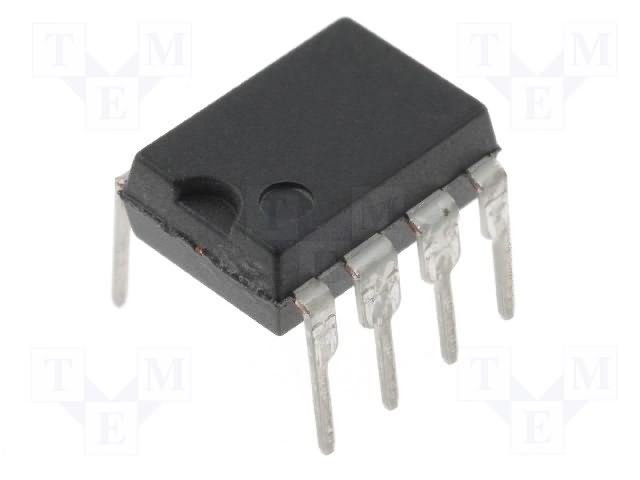

TOP210 power IC driver management chip

TOP210 power IC driver management chip

650.00

Description: The TOP210 is a monolithic high-voltage, high-performance power IC designed for offline switch mode power supply applications. It integrates a 700V power MOSFET, high voltage startup, current mode PWM control, fault protection, and other necessary functions onto a single chip. The TOP210 is known for its efficiency, reliability, and versatility in various power supply designs, offering enhanced performance and ease of use in both isolated and non-isolated configurations.

Key Features:

    • Integrated 700V MOSFET
    • Current mode PWM control
    • Programmable switching frequency up to 200 kHz
    • Built-in frequency jittering for EMI reduction
    • Auto-restart and fault protection features
    • Line undervoltage lockout (UVLO)
    • Thermal shutdown protection
    • Soft start

Technical Specifications:

    • Input Voltage Range: 85VAC to 265VAC
    • Maximum Output Power: Up to 150W (depending on application and thermal conditions)
    • Efficiency: Up to 85% (typical)
    • Operating Frequency: Up to 200 kHz
    • Startup Voltage: 20V (typical)
    • Package Type: 8-pin DIP, 8-pin SOP

Applications:

    • AC-DC power supplies
    • LED lighting drivers
    • Battery chargers
    • Auxiliary power supplies
    • Industrial and consumer electronics

Datasheet: For detailed technical information, refer to the TOP210 power IC datasheet.

In stock

SKU: 1599 Category:
