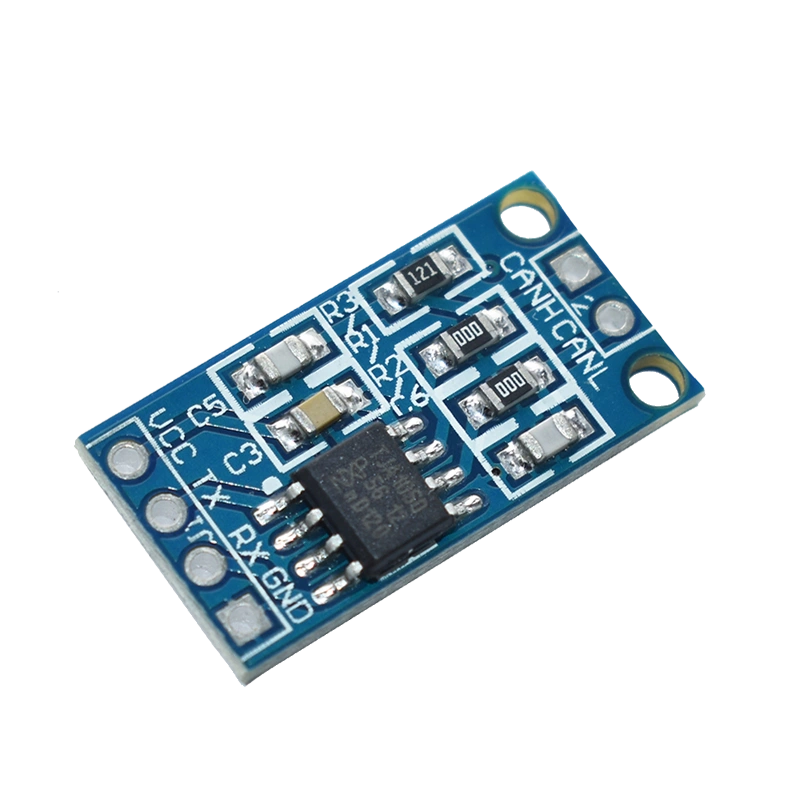

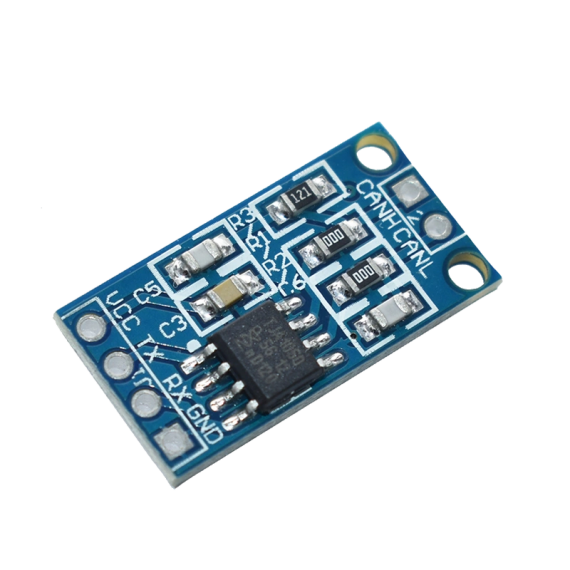

TJA1050 CAN controller interface module

The TJA1050 CAN controller interface module serves as a bridge between a CAN protocol controller and the physical CAN bus. It enables differential signal transmission to the bus and allows differential signal reception from the bus back to the CAN controller.

Features and Specifications:

• Integrated TJA1050 CAN controller chipon board
• Operates with a 5V power supply

• Compact PCB dimensions: 22 mm x 11.5 mm
• Compliant with ISO 11898CAN standard
• High-speed communicationsupported (up to 1 Mbaud)

• Very low Electro-Magnetic Emission (EME)

• Differential receiversupports a wide common-mode range, ensuring strong immunity to electromagnetic interference (EMI)
• The module does not interfere with the CAN buswhen unpowered
• Includes a TXD dominant time-out featureto prevent bus lockup
• Supports a silent modewhere the transmitter is disabled for passive monitoring
• Bus interface is protectedagainst voltage transients common in automotive environments
• Compatible with both 3V and 5V logic levels, making it suitable for a wide range of microcontrollers
• Thermal protection
• Short-circuit protectionagainst both battery voltage and ground faults

Applications

• Suitable for use in nodes that are in a power-down situation in partially powered networks.
• Robotics: Enabling communication between different components of robotic systems.
• Embedded Systems: Used in various embedded applications where high-speed communication is required.
• DIY Electronics and Prototyping: Ideal for testing and developing CAN-based projects.
• Portable Devices: Supporting communication within portable energy systems and other portable devices.
