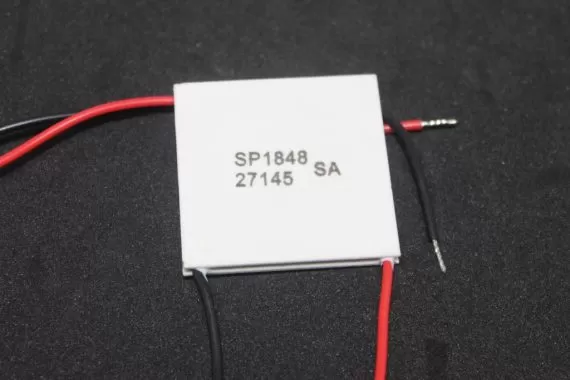

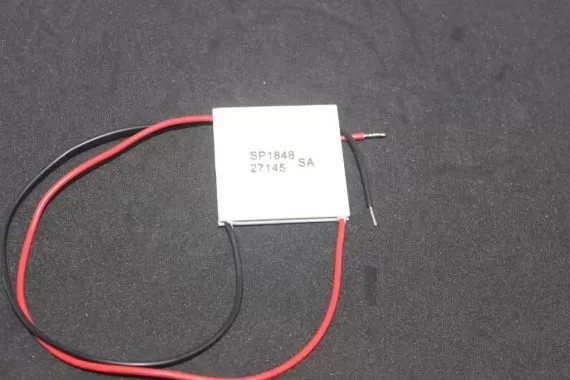

SP1848-27145 thermoelectric peltier cooler
₦5,500.00
Description: The SP1848-27145 Thermoelectric Peltier Cooler is a high-performance thermoelectric module designed for cooling applications. It utilizes the Peltier effect to transfer heat from one side of the module to the other, providing efficient and precise temperature control. This module is suitable for various applications including cooling electronic devices, temperature regulation in small enclosures, and experimental setups.
Key Features:
- Thermoelectric cooling module based on the Peltier effect
- High cooling capacity and efficiency
- Compact design for easy integration
- Provides precise temperature control
- Suitable for various cooling applications
Technical Specifications:
- Model: SP1848-27145
- Cooling Power: Up to 71W
- Temperature Differential: Up to 68°C (depending on conditions)
- Maximum Current: 4.5A
- Operating Voltage: 12V DC
- Thermal Resistance: 1.5°C/W (typical)
- Dimensions: 40mm x 40mm x 3.8mm
- Weight: 30g
Applications:
- Electronic device cooling
- Temperature regulation in small enclosures
- Experimental cooling setups
- Cooling systems for sensors and small components
In stock
This magical cells based on the Peltier effect are capable of generating electric power. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module operates maximum up to 150°C which will give you different voltage and current outputs at different values of temperature.
Thermoelectric Power Generators also are known as TEG or Peltier Module create a detects temperature differential on each side. You can take the advantage of this temperature differential detection to generate electricity.
After applying the heat on one side and cold on other side the device will start generating the voltage which depends upon the value of applied heat. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module will generate the moderate amount of voltage with mA of current.
A Thermoelectric Generator (TEG) module is a semiconductor-based electronic component that functions as a small generator.
Temperature (°C) 20 40 60 80 100
Open circuit voltage (V) 0.97 1.8 2.4 3.6 4.8
Current (mA) 225 368 469 558 669
Operating Tips:
Do not exceed the maximum operating temperature of the module.
Life expectancy: 200,000 hours.
Failure rate based on longtime testings: 0.2%.
Important Note!!
MODEL NUMBER SIDE IS EXPOSED TO “HEAT-SINK or ICE” AND OPPOSITE SIDE TO “HEAT“.
Place 2-3 drops of grease compound on both sides of TEG Module
Features :
Small and lightweight, convenient for use.
Designed specifically for power generation.
Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
High-temperature 150°C, with NM static protection.
Quality tested cooling cells.
Simple to install and operate.
with 5v Booster board you can charge the cell phone
