Raspberry pi 3W Night Vision Camera Automatic Infrared Light
₦2,200.00
Description:
The Raspberry Pi 3W Night Vision Camera with Automatic Infrared Light is a high-quality camera module designed specifically for Raspberry Pi boards. It features infrared LEDs for enhanced night vision capabilities, making it ideal for surveillance, wildlife monitoring, and other applications requiring low-light performance.
Key Features:
- High-resolution camera: Provides clear images and videos.
- Night vision capability: Equipped with infrared LEDs for night-time use.
- Automatic infrared light: IR LEDs automatically adjust based on ambient light conditions.
- Compatible with Raspberry Pi: Seamless integration with Raspberry Pi boards.
- Easy to set up: Connects directly to the Raspberry Pi CSI port.
- Compact design: Small form factor suitable for various projects.
Technical Specifications:
- Camera Resolution: Typically 5MP or higher
- Infrared LEDs: Automatic adjustment for night vision
- Interface: CSI (Camera Serial Interface)
- Operating Voltage: 3.3V (from Raspberry Pi)
- Dimensions: Compact module size
- Weight: Lightweight design
Applications:
- Surveillance: Ideal for security cameras with night vision capabilities.
- Wildlife monitoring: Captures images and videos in low-light conditions.
- Home automation: Integrates with smart home systems for monitoring.
- Robotics: Provides vision capabilities for robots in various lighting conditions.
- DIY projects: Suitable for custom Raspberry Pi camera projects.
Datasheet:
For detailed technical information and specifications, please refer to the datasheet of the Raspberry Pi Night Vision Camera.
In stock
This is the additional focus that can be added to your night vision surveillance camera project using Raspberry Pi.

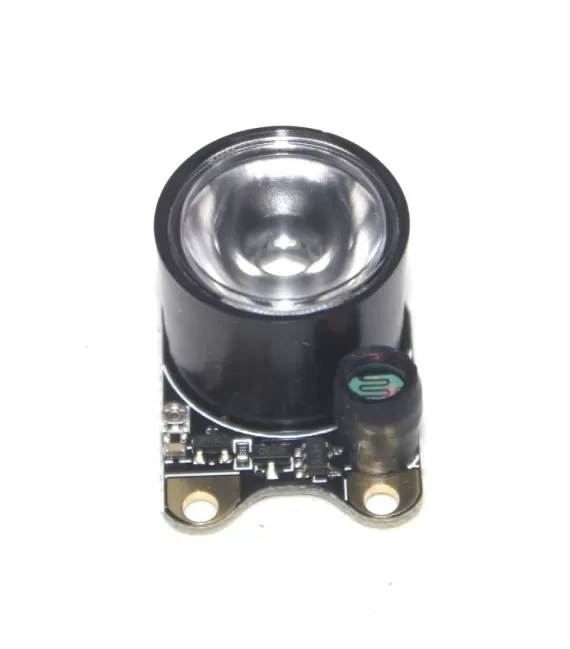

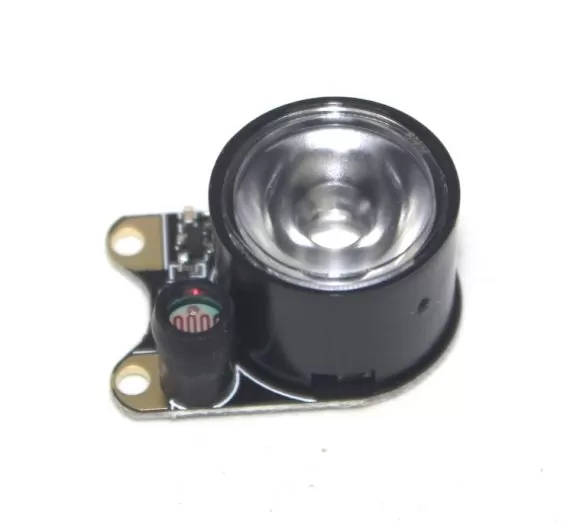

The Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera features the On-board photoresistor for the ambient light detection. Also, the On-board adjustable resistor controls the ambient light threshold of toggling the infrared LED.
This tiny infrared light perfectly fits with our Infrared IR Night Vision Surveillance Camera Module 500W Webcam.
How to Use :
1. Connect the Infrared LED Board to the camera PCB by screws.
2. The screw holes are used for both attachment and power supply.
3. Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically.
4. When ambient light is lower than the threshold value, the infrared LED is on, vice versa.
Note :
1st   – The 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
2nd  – Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.
Technical Specifications :
- Small size and Lightweight module.
- Operating Voltage: 5V
- Operating current: 2A~2.2A
- Power: 3W
- Easy to use.
- Equips onboard photoresistor and adjustable resistor
- Allows adding night vision function to RPi Camera (E) or RPi Camera (F).
