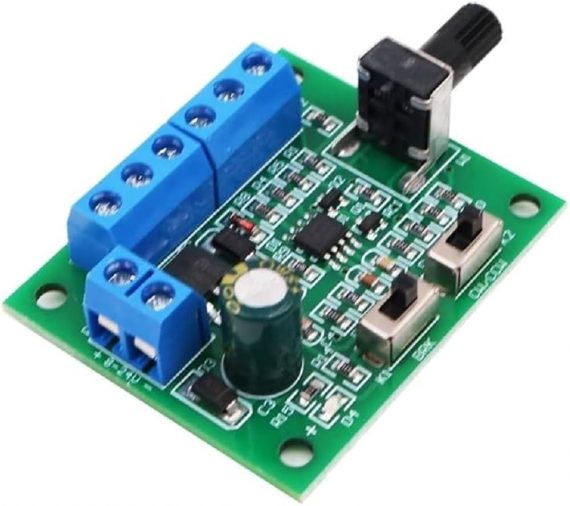

PWM Brushless motor speed regulator

Description

A PWM Brushless Motor Speed Regulator gives you precise control over your brushless DC motors. This little module, designed for efficiency and precision, provides smooth and consistent speed control using Pulse Width Modulation (PWM), making it ideal for a wide range of DIY, industrial, and embedded applications.
It works exclusively with brushless motors that have built-in drivers and PWM speed control. It is not a motor driver, but rather generates PWM signals for speed control. The motor is also necessary to power the switches

Key Features:

• Wide Voltage Support: Compatible with 5V to 36V brushless DC motors.
• Adjustable Speed Control: Uses PWM input or onboard potentiometer for flexible speed regulation.
• High Efficiency: Low power loss and minimal heat generation.
• Plug-and-Play Interface: Simple wiring for fast integration.
• Compact Design: Fits easily into tight enclosures or embedded systems.
• Overcurrent Protection: Built-in safety to protect motor and regulator.

Technical Specifications

• Input Voltage: 8V–24V DC
• PWM Output Voltage: 5V
• Rated Current: 12A
• PWM Signal Frequency Range: 18KHz
• Control Mode: External PWM signal / onboard potentiometer
• Potentiometer: 10K
• PWM Duty Cycle Range: 0%–100%
• Dimensions: Approx. 48mm x 40mm x 16mm
• Switch: positive switch model
• Connector Type: Screw terminals or pin headers

Applications

• DIY electric vehicles
• Robotics and automation systems
• CNC machinery and 3D printers
• Smart home appliances
• RC models (drones, planes, cars)
• Industrial motor control projects
