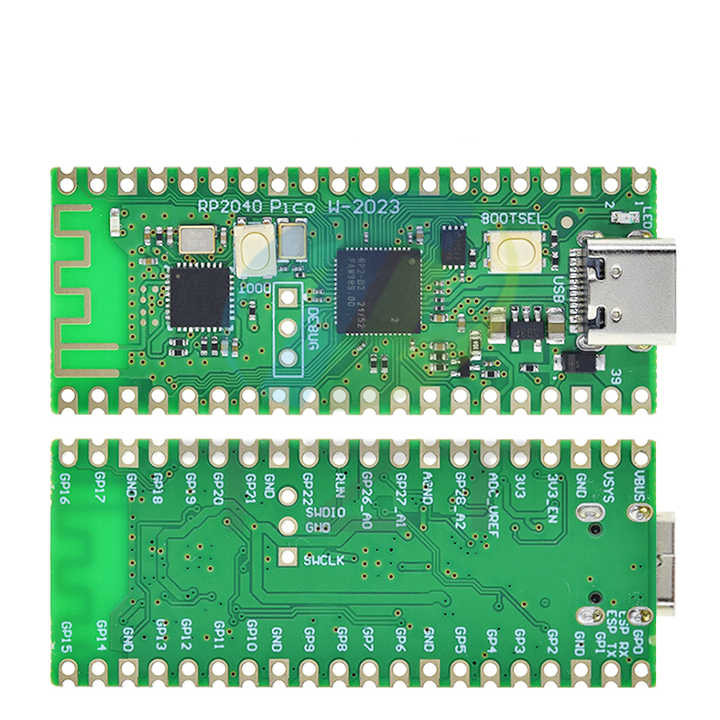

Pi Pico W RP2040 Type C

The Pi Pico W RP2040 Type C is a high-performance, professional development board built around the RP2040 microcontroller.

Key Features:

• Pin-compatible with the Raspberry Pi Pico
• USB Type-C interface
• Built-in RESET button
• 4MB of onboard Flash memory
• Dual-core Arm Cortex-M0+ processor, configurable up to 133MHz
• 264KB of SRAM
• On-chip DMA controller
• Optimized libraries for integer and floating-point operations
• Easy USB-based programming (drag-and-drop)
• Dual PLLs for generating core and USB clocks
• 27 GPIO pins, including 4 analog-capable pins
• Interfaces: 2 × UART, 2 × SPI, 2 × I2C, 16 × PWM channels
• USB 1.1 controller with full host and device support
• Built-in temperature sensor and accurate internal clock
• 8 × PIO state machines for creating custom I/O
• Affordable, reliable, and widely available
• Flexible power input via USB or external sources
• Supported by a comprehensive SDK, examples, and documentation

Technical Specifications:

• USB Port:USB Type-C
• Dimensions:21 mm × 51 mm
• Processor:Dual-core Arm Cortex-M0+ running at up to 133MHz
• Memory:264KB SRAM, 4MB Flash
• GPIOs:27 (4 analog input capable)
• Interfaces:

  • 2 × UART
  • 2 × SPI
  • 2 × I2C
  • 16 × PWM
  • 1 × USB 1.1 with host/device support
  • 8 × PIO state machines
• Power Input:3V – 5.5V DC
• Reset Button:Yes

Applications:

• IoT: Due to its wireless connectivity, it’s ideal for building smart home devices, sensors, and other IoT applications.
• Robotics: Its compact size and GPIO pins make it suitable for controlling motors, sensors, and other robotic components.
• Embedded Systems: It can be used in various embedded systems, such as industrial automation and data logging.
• Educational Projects:It is a great learning tool for beginners in microcontroller programming and embedded systems.

Datasheet: For detailed technical information, refer to the RP2040 Datasheet.
