GY-BME280-5V temperature Humidity and atmospheric pressure sensor module

GY-BME280-5V temperature Humidity and atmospheric pressure sensor module

6,800.00

In stock

SKU: 1187 Categories: , , ,

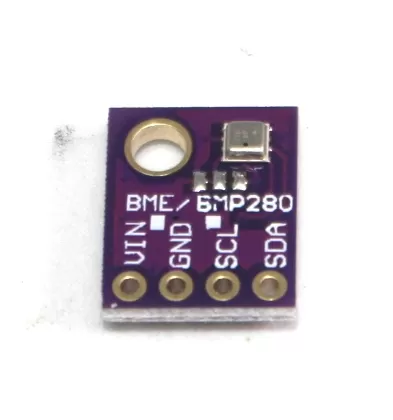

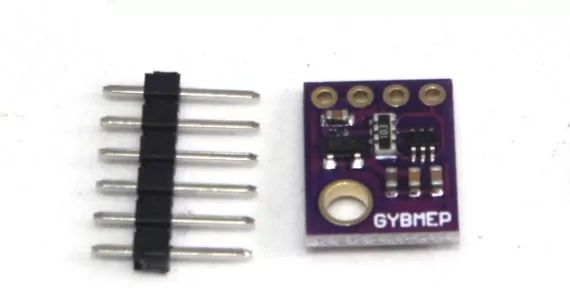

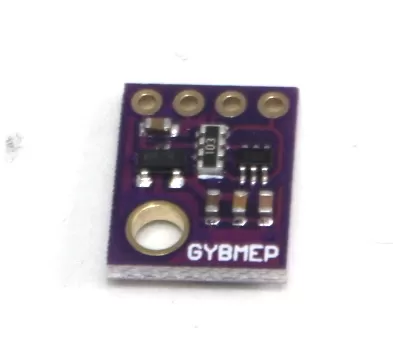

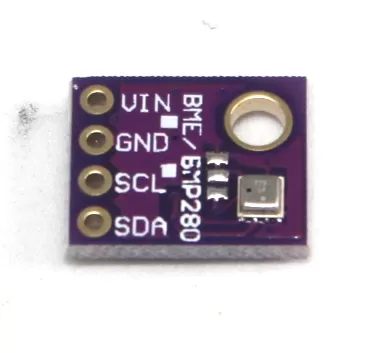

Digital Temperature/Humidity/Barometric Pressure Sensor Module Breakout BME280 Size: 15mm x 11.5mm
BME280, the precision sensor from Bosch, is soldered onto PCB. Not only the pressure and the temperature, this sensor can measure humidity. It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

Technical Specifications:
l Supply Voltage: 1.8 – 5V DC

l VDDIO interface voltage range:  1.2 V to 5.5 V

l Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)

Features:

Operational Range:
Temperature:  -40 to +85°C

Humidity:  0-100%

Pressure:  300-1100 hPa

Resolution:
Temperature:  0.01°C

Humidity:  0.008%

Pressure:  0.18Pa

Accuracy:
Temperature: ±1°C

Humidity: ±3%

Pressure: ±1Pa

I2C address:
SDO LOW :  0x76

SDO HIGH:  0x77
