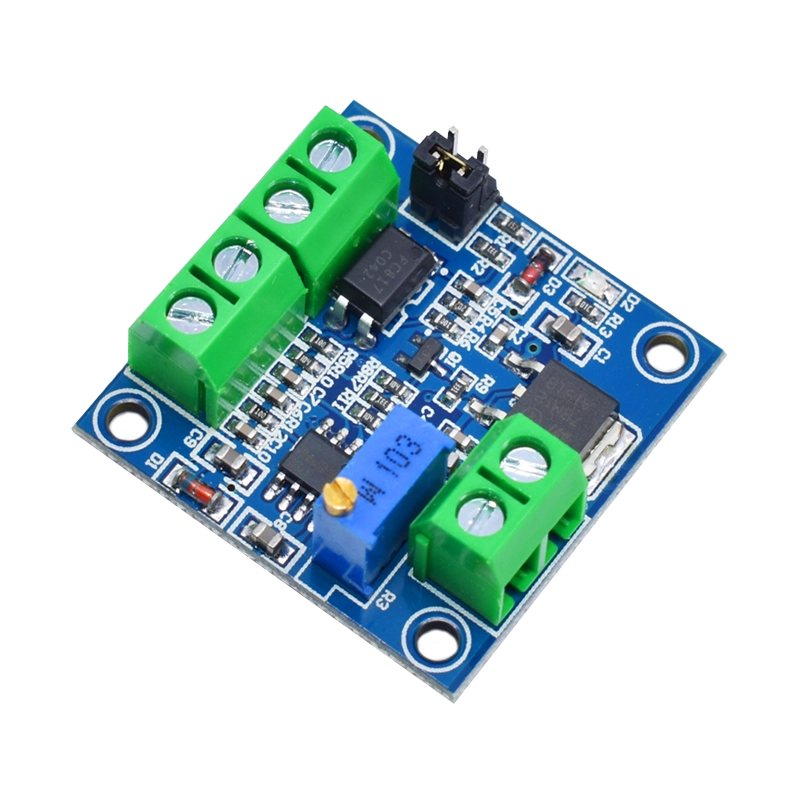

Voltage to PWM module

The Voltage to PWM module is a compact and efficient module designed to convert analog voltage signals (0–5V or 0–10V) into a PWM signal with a 0–100% duty cycle.

Features:

• Utilizes embedded single-chip microcontroller technology for stable performance
• Easy to operate, with fine-tuning available via an onboard potentiometer
• Supports selectable input voltage ranges (0–5V / 0–10V)via jumper cap for flexibility
• Compact and lightweight design, making it easy to carry and integrate into various applications

Specifications:

• Operating Voltage:DC 7V – 12V
• Conversion Range:0–5V / 0–10V input voltage to 0%–100% PWM output
• Output PWM Amplitude:5V (constant)
• PWM Frequency:~50 kHz (standard)
• Accuracy (Allowable Error):1% – 3%
• Module Dimensions:32mm × 34mm

 Applications:

• The module is used to control motors or other areas where PWM is required.
