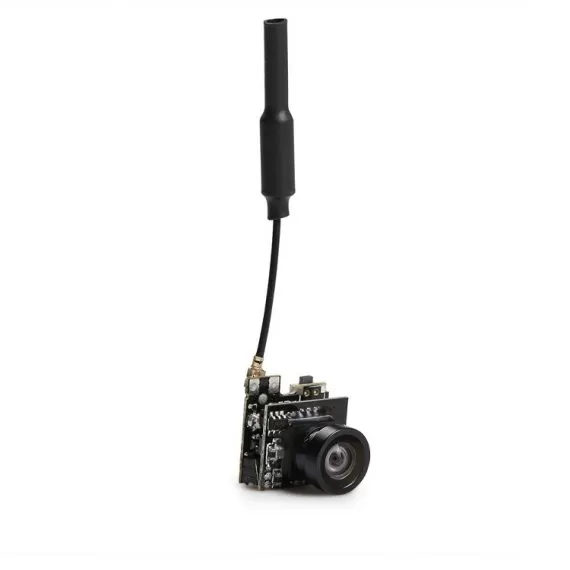

LST-S2 40CH 25mw 5.8G integrated image transmission mini drone camera

LST-S2 40CH 25mw 5.8G integrated image transmission mini drone camera

23,000.00

In stock

SKU: 0769 Categories: , ,

Product introduction:

FPV image transmission and launching machine

Sensor: 1/4” CMOS

Lens: M8 800 TVL lens

Angle: horizontal viewing angle 150° oblique viewing angle 170°

Format: NTSC / PAL (switchable)

Power consumption: 380mA@ 3.7 v

Voltage: 3.6–5.5 v

Lens mirror diameter: 2.1mm FOV150° (horizontal)



Video transmitter:

Support video format: NTSC / PAL

Output impedance: 75 ohms

Output signal strength: 23 ~ 24 dbm

Output power: 25 mw

Wireless channel: 40 ch

Working voltage: 3.6 v ~ 5.5 v

Current: 100mA

Audio carrier: 6.5 mhz



The function of the button:

Short press (1 second): switch channels 1-8

Long press (1.5 seconds): switch frequency band ABEFR

Long press (3 seconds): Switch NTSC/PAL system

NTSC or PAL (Blue LED on = NTSC; Blue LED off = PAL)



Product weight: 3.6g

Product size: 17 x13x14.5mm (without antenna)



Features:

1. All-in-one video transmission and launcher, ultra-small size, ultra-light weight;

2. The horizontal viewing angle is 150° and the oblique viewing angle is 170°;

40 channels combined with 3.5 frequency bands and 8 frequency points.





The package includes:

1 X LST-S2 FPV camera

1 X wire

Additional Information

Weight 0.004 kg
