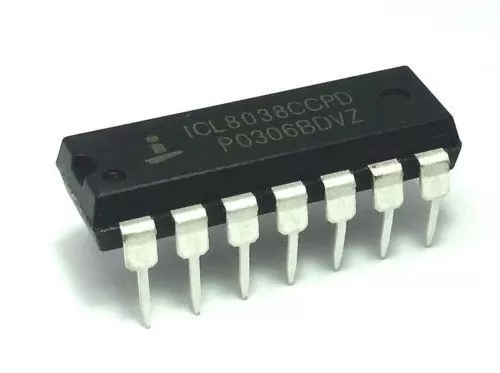

ICL8038CCPD waveform generator
₦2,800.00
Description:
The ICL8038CCPD is a precision waveform generator IC capable of producing high-accuracy sine, square, triangular, sawtooth, and pulse waveforms with minimal external components. It offers a high degree of flexibility with adjustable frequency, duty cycle, and amplitude, making it suitable for various applications in function generation and signal processing.
Key Features:
- Capable of generating sine, square, triangular, sawtooth, and pulse waveforms
- Wide frequency range: 0.001 Hz to 300 kHz
- Low distortion sine wave: less than 1% THD
- Adjustable duty cycle
- Frequency adjustable via external resistors and capacitors
- High frequency stability
- Low total harmonic distortion
- Linear triangle wave generation
- Single or dual supply operation: ±5V to ±15V
Technical Specifications:
- Package Type: PDIP-14
- Supply Voltage Range: ±5V to ±15V
- Frequency Range: 0.001 Hz to 300 kHz
- Output Amplitude: Adjustable
- Sine Wave Distortion: <1% THD
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 19.3 mm x 6.35 mm x 4.57 mm
- Weight: 1.02 g
Applications:
- Function Generators: Used in electronic test equipment for generating various waveforms.
- Audio Signal Generation: Produces audio frequency signals for testing and audio equipment.
- Signal Processing: Used in signal processing circuits for waveform generation and modulation.
- Communication Systems: Generates test signals for communication equipment and systems.
- Educational and Training Kits: Ideal for teaching and learning about waveform generation and signal theory.
Datasheet:
For detailed technical information, refer to the ICL8038CCPD Datasheet.
Category: Waveform Generators / Signal Generation ICs
In stock
The ICL8038 waveform generator is a monolithic integrated
circuit capable of producing high accuracy sine, square,
triangular, sawtooth and pulse waveforms with a minimum of
external components. The frequency (or repetition rate) can
be selected externally from 0.001Hz to more than 300kHz
using either resistors or capacitors, and frequency
modulation and sweeping can be accomplished with an
external voltage. The ICL8038 is fabricated with advanced
monolithic technology, using Schottky barrier diodes and thin
film resistors, and the output is stable over a wide range of
temperature and supply variations. These devices may be
interfaced with phase locked loop circuitry to reduce
temperature drift to less than 250ppm/oC.
