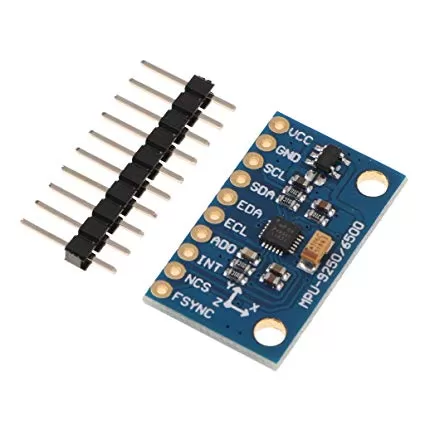

GY-6500 MPU6500 6 axis altitude acceleration and gyro sensor module

The single-chip MPU-6500 integrates a 3-axis accelerometer, a 3-axis gyroscope, and an onboard Digital Motion Processor™ (DMP) in a small, 3 mm x 3 mm x 0.9mm QFN package. The 6-axis device is the world’s first motion sensor to operate at 1.8 volts and consumes only 6.1 mW of power in full operating mode. It incorporates gyroscope performance of only ±5 dps zero-rate-output and 0.01 dps/√Hz of noise, and delivers accelerometer specifications including a typical offset of ±60 mg, 300 µg/√Hz of noise, and 18 µA of current in low-power mode.

Technical Specifications:

1. MPU-6500 module (three-axis gyroscope + three-axis acceleration)
2. Module Model: GY-6500
3. Use the chip: MPU-6500
4. Power supply: 3-5v (internal low voltage regulator)
5. Communication: Standard IIC / SPI communication protocol
6. Chip built-in 16bit AD converter, 16-bit data output
7. Gyro range: ±250 500 1000 2000 °/ s
8. Acceleration range: ±2 ±4 ±8 ±16g
9. The use of immersion gold PCB, machine welding process to ensure quality
10. Pin pitch: 2.54mm
11. Module size: 15mm * 25mm
