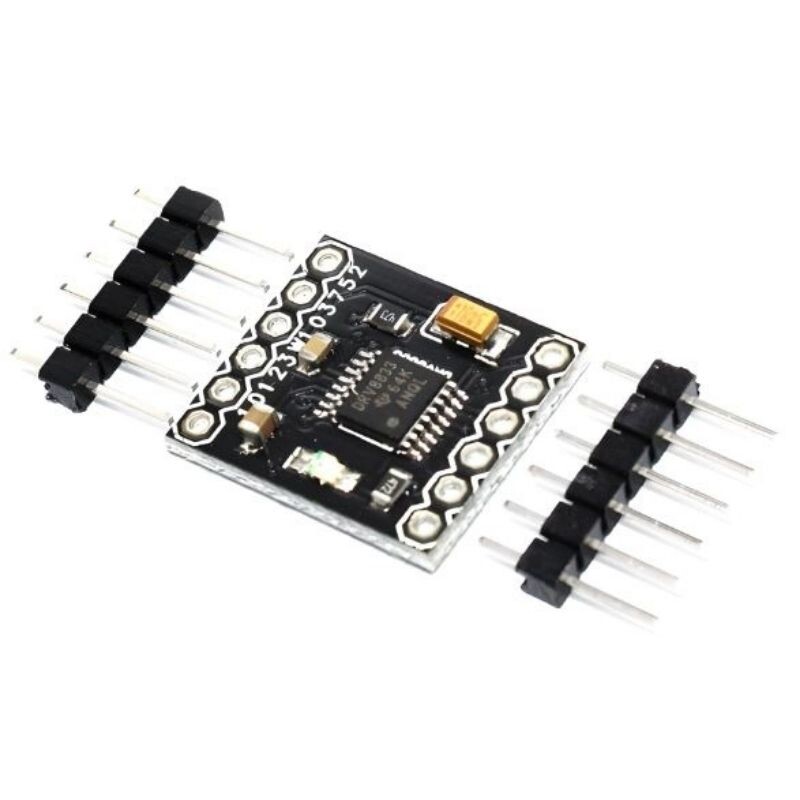

DRV8833 motor driver module

Description

The DRV8833 Motor Driver Module is a compact dual H-Bridge driver that can power two DC brush motors or a bipolar stepper motor. It’s suitable for low-power robotics, automation, and embedded control systems because it includes built-in protection and operates at a low voltage

Key Features

• Dual H-Bridge Outputs: Controls two DC motors or one bipolar stepper motor.
• Wide Voltage Range: 2.7V to 10.8V.
• High Output Current: Delivers up to 1.5A continuous per channel.
• Low Power Operation: Ideal for battery-powered devices.
• Built-in Protection: Includes undervoltage lockout, overcurrent and short circuit protection and thermal shutdown. With low power sleep mode.
• Compact Design: Space-saving for embedded and portable projects.
• PWM Support: Uses PWM to regulate and limit current. Enables speed and direction control via microcontroller.
• Thermally Enhanced Surface-Mount Packages.

Technical Specifications

• Operating Voltage: 2.7V – 10.8V
• Input pin Voltage: 3V – 5.75V
• Continuous (Average) Output Current: 1.2A per channel
• Peak Output Current: 2A per channel
• Continuous paralleled output current: 4A
• Control Interface: IN1/IN2 and IN3/IN4 pins (PWM-compatible)
• Dimensions: Approx. 16mm x 18mm x 3mm
• PCB Type: Dual H-Bridge, breakout board

Applications

• Robotics
• Gaming machines
• Video security cameras
• POS printers
• Battery powered toys

Why Choose This Product?

The DRV8833 module is a reliable and versatile choice for low-voltage motor control. With a small footprint and straightforward interface, it integrates seamlessly with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
