DC-DC USB Adjustable buck-boost 5v to3.3v 9v 12v 24v with LCD display

DC-DC USB Adjustable buck-boost 5v to3.3v 9v 12v 24v with LCD display


In stock (can be backordered)

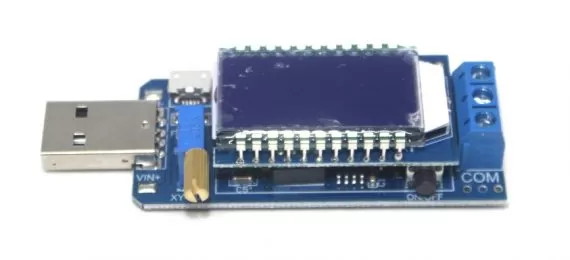

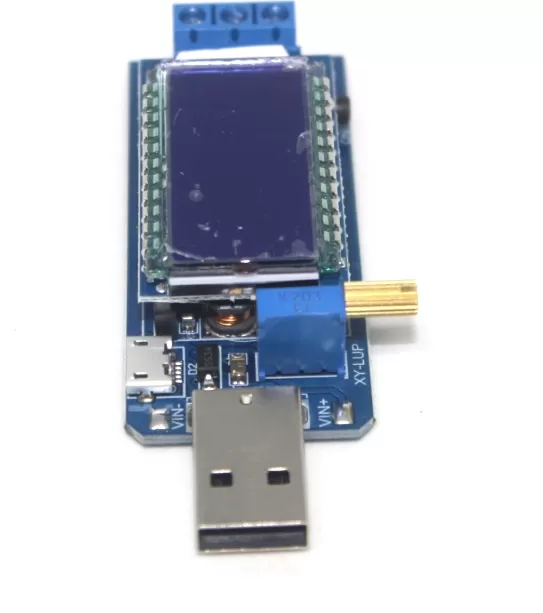

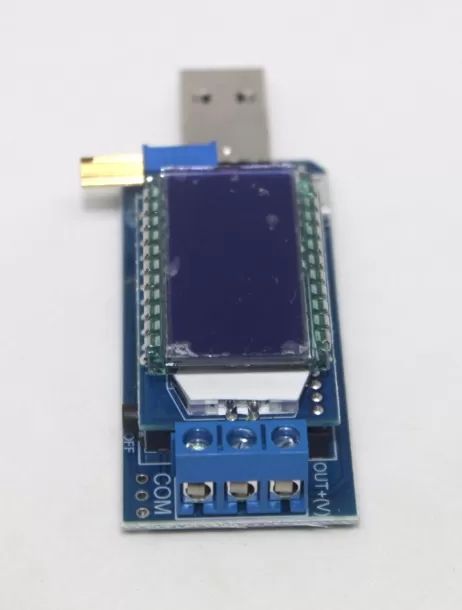

This is an instrument with integrated buck boost power supply module and multi-function voltage ammeter.
In ‘PER’ work mode,it can be used as buck-boost power supply module. It can convert to DC 3.5V~12V to DC 1.2V~24V and power is about 2W~3W.
In ‘VAH’ work mode, it can be used as multi-function voltage ammeter to measure voltage, current, power, battery capacity, discharging time.
It is very suitable for technical engineers to develop, debug instrumentation, after-sales engineers travel maintenance, etc.

It has Dual operating system, Support power supply output function, Support test power supply function, Support over power protection, LCD high definition display, Automatic calibration, Multi-parameter simultaneous display, Support power saving mode, Three voltage input methods and Support voltage and current calibration.


Technical Specification

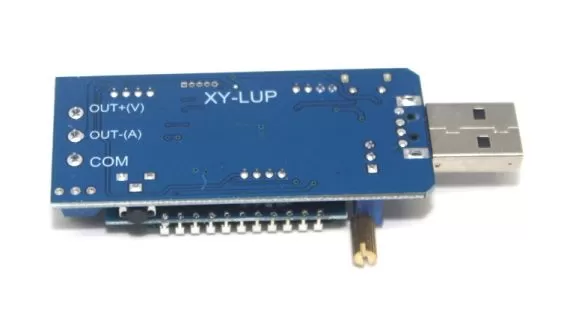

  • Model: XY-LUP;
  • Work Voltage: DC 3.5V-12V;
  • Output Voltage: DC 1.2V-24V;
  • Output Power: 3W(MAX);
    Maximum output power within 2W when output DC 1.2V~2V;
    Maximum output power within 3W when output DC 2V~20V;
    Maximum output power within 2.5W when output DC 20V~24V;
  • Output voltage accuracy:+/-0.5%
  • Output voltage accuracy:+/-1%
  • Measure voltage range:DC 0~35V
  • Measure current range:0~3A
  • Measure power range:0~110W
  • Measure battery capacity range:0~9999Ah
  • Discharging time:0~100hours
  • Work Temperature:-40℃~85℃;
  • Work Humidity:0%~95%RH;
  • Size:77*33*16mm
