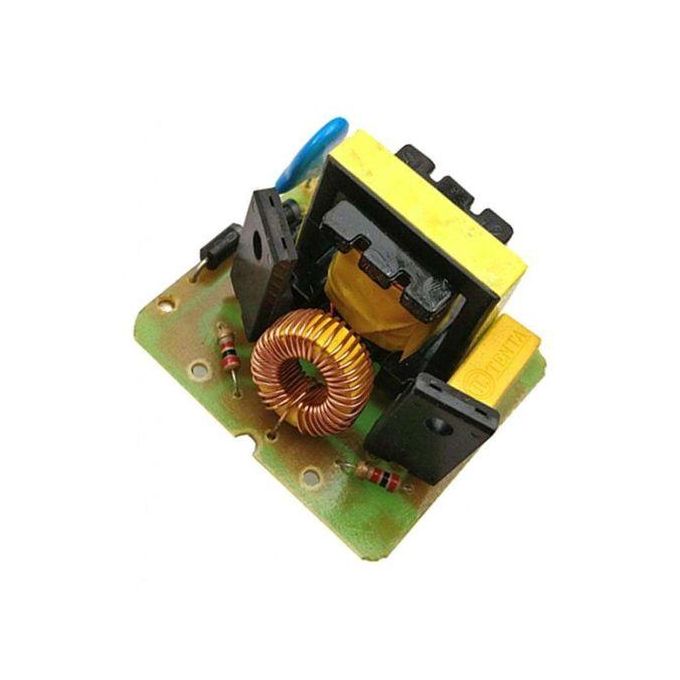

DC-AC 40W Boost Inverter Module (12V to 220V AC)

Key Features:

• 12V to 220V AC Conversion: Converts DC 8V-13V battery power to household 220V AC
• 40W Power Output: Capable of driving LED bulbs, small appliances, and energy-saving lamps
• High-Frequency Design: Ensures higher efficiency and stable power output
• Modular Expandability: Parallel connection allows for higher power output (up to 200W with multiple boards)
• Compact & Lightweight: Space-saving design for easy integration into DIY and embedded projects

Technical Specifications:

• Input Voltage: DC 8V-13V (Recommended 12V for full performance)
• Output Voltage: AC 220V (High-Frequency Inverter)
• Power Output: 40W per module (parallel connection supports higher power)
• Efficiency: Up to 48.26% power savings compared to standard inverters
• Output Power Ranges (based on input voltage):
  • 3V input → 1W-3W AC output
  • 5V input → 1W-5W AC output
  • 8V input → 1W-10W AC output
  • 10V input → 1W-15W AC output
  • 12V input → 1W-26W AC output
  • 14V input → 1W-35W AC output

Wiring Instructions:

Applications:

✅ Power Backup for Modems, Routers, Phones, and LED Lamps
✅ Portable Energy Supply for Camping and Outdoor Use
✅ DIY Solar Inverter and Energy Conversion Projects
✅ Small Household Electronics (Not suitable for high-power appliances)

Important Notes:

⚠ This module is a high-frequency inverter – Do not test with a standard multimeter, as inaccurate voltage readings may occur. Use a high-frequency power meter for proper testing.
⚠ Parallel multiple units for higher output power (e.g., 10 modules = 120W-200W output).
⚠ Manual soldering required – the module does not include pre-attached wires.

Why Choose This Inverter Module?

✔ Compact & Energy-Efficient – Ideal for low-power AC applications
✔ Expandable Power Output – Connect multiple units for higher capacity
✔ Reliable High-Frequency Conversion – Works efficiently with 12V battery systems
