5mW laser tube head

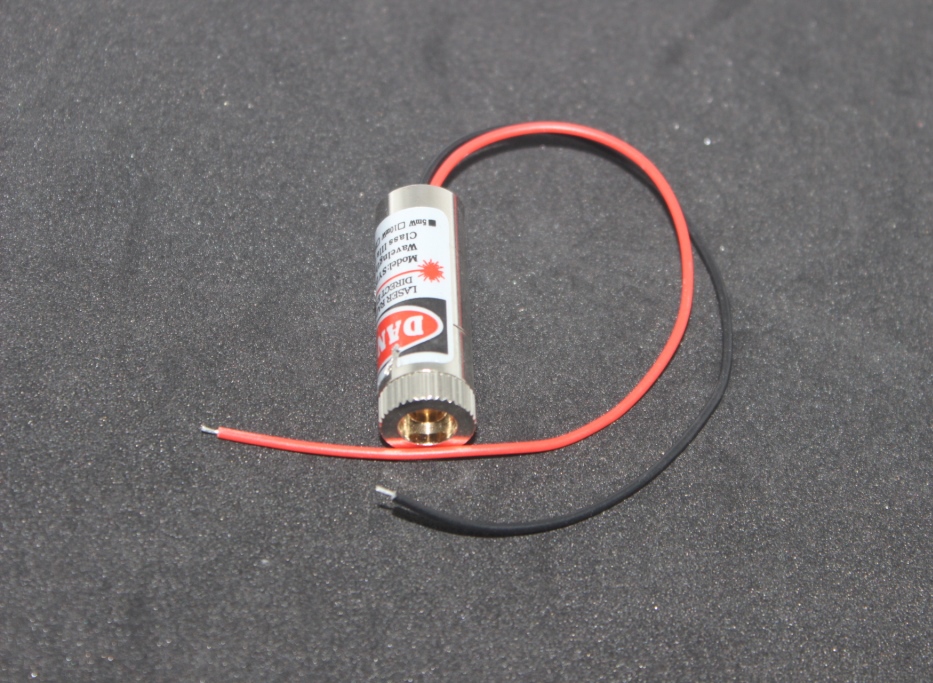

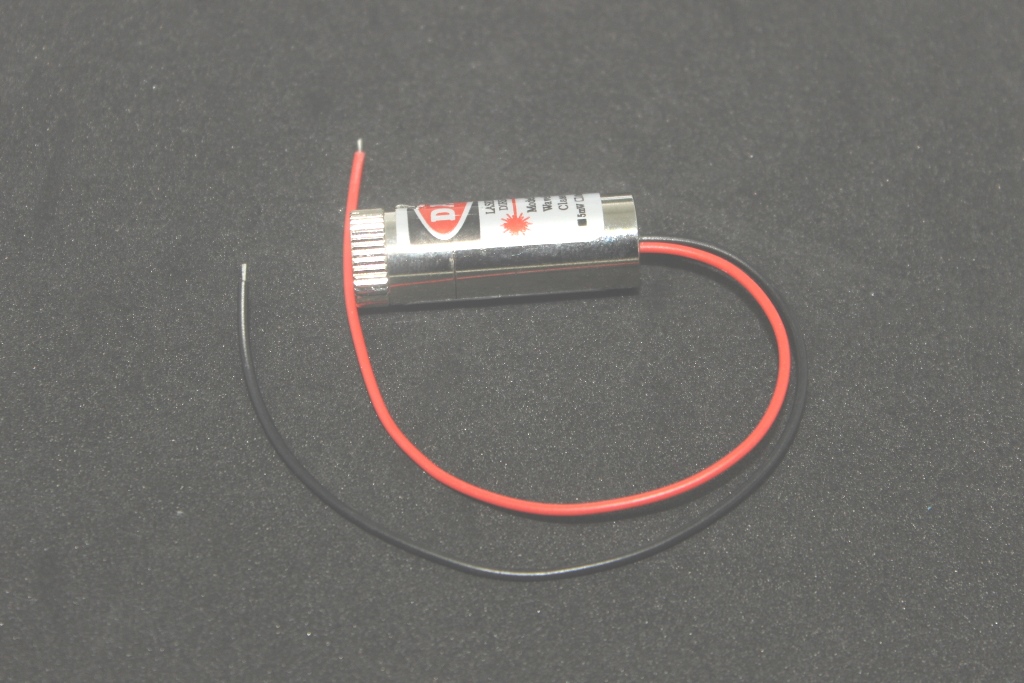

This is 12mm 5mW Red Point Laser Module SYD1230 Point Spot Size Adjustable Laser. Easy to install, Durable and portable, laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.

It is suitable for 3V-5V 5mW standard, with 6mm outside diameter. It can be used to connect diode tubes for multiple uses.

This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.

Features and Specifications

• Model: SYD1230
• Color: Silver
• Material: Copper + Iron
• Wavelength: 650nm
• Output Optical Power: 5mW
• Operating Voltage: DC 4~6V
• Operating Current: <280mA
• Laser Output Beam:  “.” Point Type
• Operating Temperature: 20’C~35’C
• Storage Temperature: -20’C~+60’C
• Widely used in engineering, signal appliance, the manufacture of tools, medical equipment, etc.

Applications

• Level instrument
• Ground instrument
• Long distance laser listener remote light control
• Long distance laser wireless communication

NB:
It does not emit the RED-Line or Single RED Cross LINE since it is a point laser module.
Please use the DC power supply 3~6V.
Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
The laser beam must not be directed towards the eyes of a person or an animal in any way.
The red cord is an anode, the black cord is a cathode.
