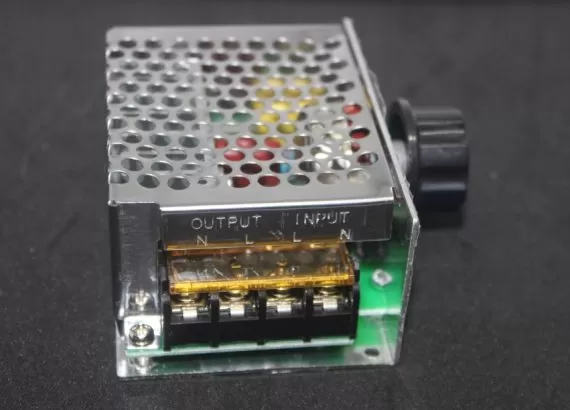

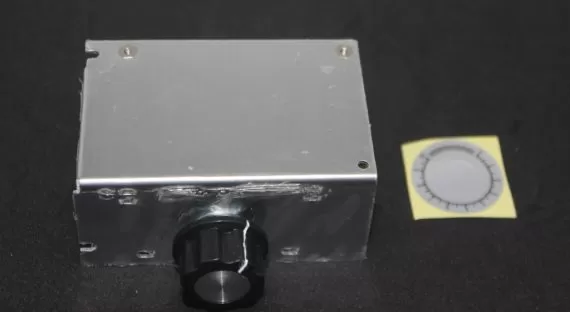

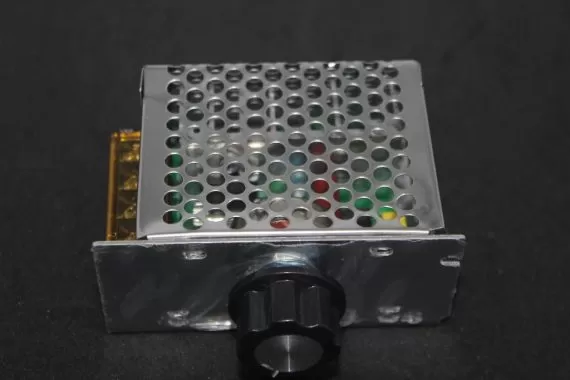

4000w High power Thyristor 220VAC to10-220VAC

The 4000W High Power Thyristor is designed for controlling and regulating the AC voltage from 10V to 220V. This powerful thyristor module is ideal for high-power applications, including motor speed control, light dimming, heating element regulation, and other AC load control scenarios. It ensures efficient and reliable performance even under heavy load conditions.

Key Features:

• High Power Capacity: Supports up to 4000W of power.
• Wide Voltage Control Range: Adjusts output voltage from 10V to 220V AC.
• Efficient Heat Dissipation: Features a robust design for effective heat management.
• Smooth Control: Provides precise control over the connected AC load.
• Simple Installation: Easy to integrate into various electrical systems.
• Durable Construction: Built to withstand high power loads and harsh operating conditions.

Technical Specifications:

• Input Voltage: 220V AC
• Output Voltage Range: 10V to 220V AC
• Power Capacity: 4000W
• Control Type: Thyristor (SCR)
• Efficiency: > 98%
• Operating Temperature Range: -20°C to +80°C
• Dimensions: 85mm x 55mm x 38mm
• Weight: 150g
• Connection Type: Screw terminal

Applications:

• Motor Speed Control: Suitable for controlling the speed of AC motors.
• Light Dimming: Ideal for dimming high-power lighting systems.
• Heating Element Regulation: Used in controlling the power to heating elements in industrial and household applications.
• Power Tools Control: Applicable for adjusting the power to various power tools.
• Fan Speed Control: Used in HVAC systems for fan speed regulation.

Datasheet:
For detailed technical specifications, refer to the 4000W High Power Thyristor 220VAC to 10-220VAC Datasheet.
