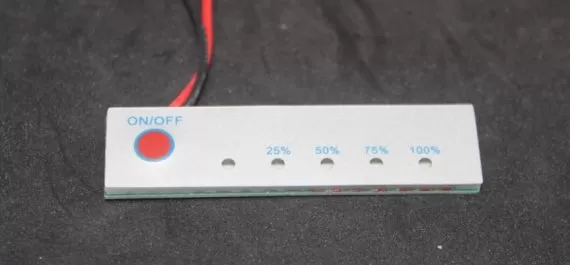

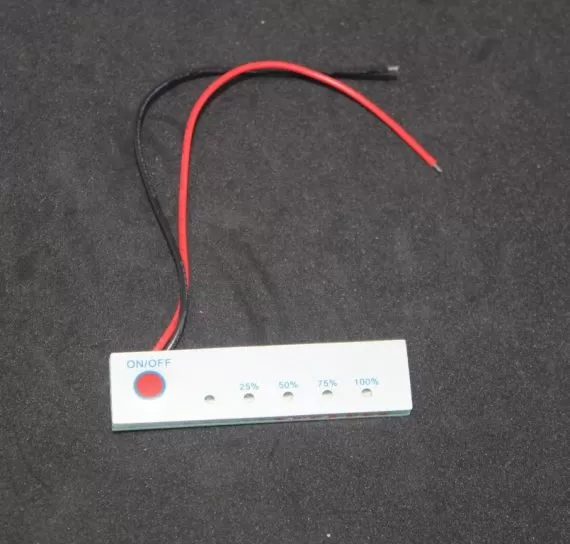

3s LIPO/ 12v battery power level indicator

Rated voltage : 12V

Product voltage range:

L1 : 1.5-8.99V

L2 : 9V

L3 : 10V

L4 : 10.6V

L5 : 11.4V

Product size: 2.7*62*15.8mm

1. During charging or discharging, use the finger to gently press the red button, and the IED lamp lights up. At this time, the current through the lamp board is about 30mA.

2. Release your finger, the LED will be off after 5 seconds, the lamp line is turned off, and no current is passed.

3. The board has a reverse connection function, and the line is not connected to the wrong one. It can be adjusted.

4. There are 5 small lights, showing the power, suitable for reverse inverter battery power prompt!
