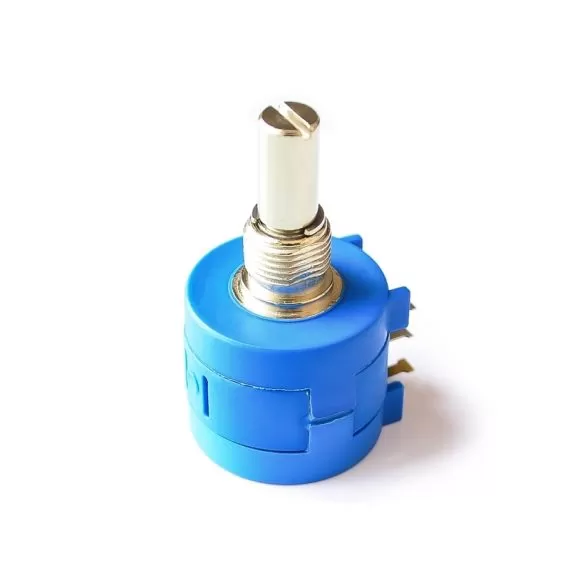

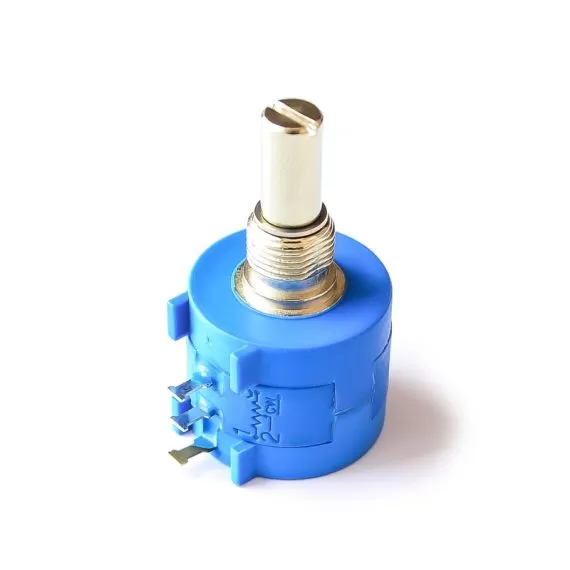

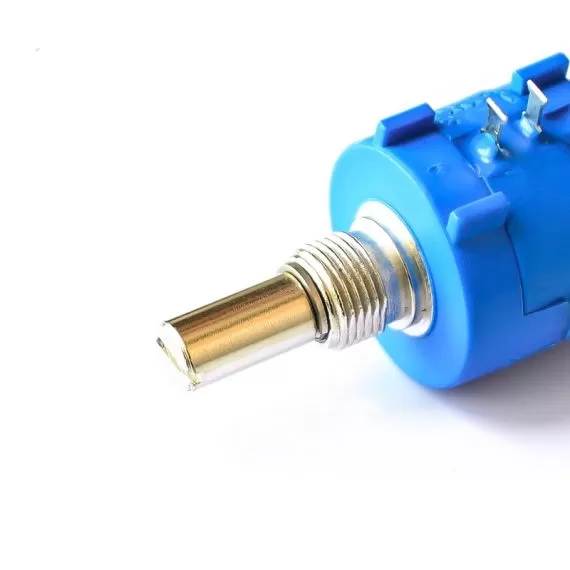

3590S-2-103L 10K high precision multi turn potentiometer

3590S-2-103L 10K high precision multi turn potentiometer

1,600.00

In stock

SKU: 2323 Category:
Specification:
Material: Plastic
Color: Blue
Model: 3590S
Type: Rotary Shaft
Technology: Wirewound
Turns: 10
Spinning life: 1,000,000 revolutions
Power: 2W
Resistance Value: 10KΩ
Resistance Tolerance: ±5%
Linearity: ±0.25%
Shaft Diameter: 6mm/0.24″
Threaded Diameter: 9mm/0.35″
Total Length: 40mm/1.6″
Load life: 1000 hours
Mechanical angle: 3600° ±10°
Operating temperature range: -55℃ – 125℃
Size(No Include Shaft): 22x19mm/0.9″x0.7″(DxH)

Additional Information

Weight 0.375 kg
